Description

SPECIFICATIONS

Amp Hours: 280Ah

Application: RV,Solar/Wind Devices, RV Battery, On/Off Grid Solar System

Battery Size: 12.8V

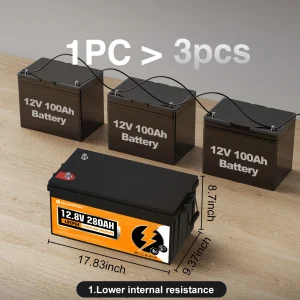

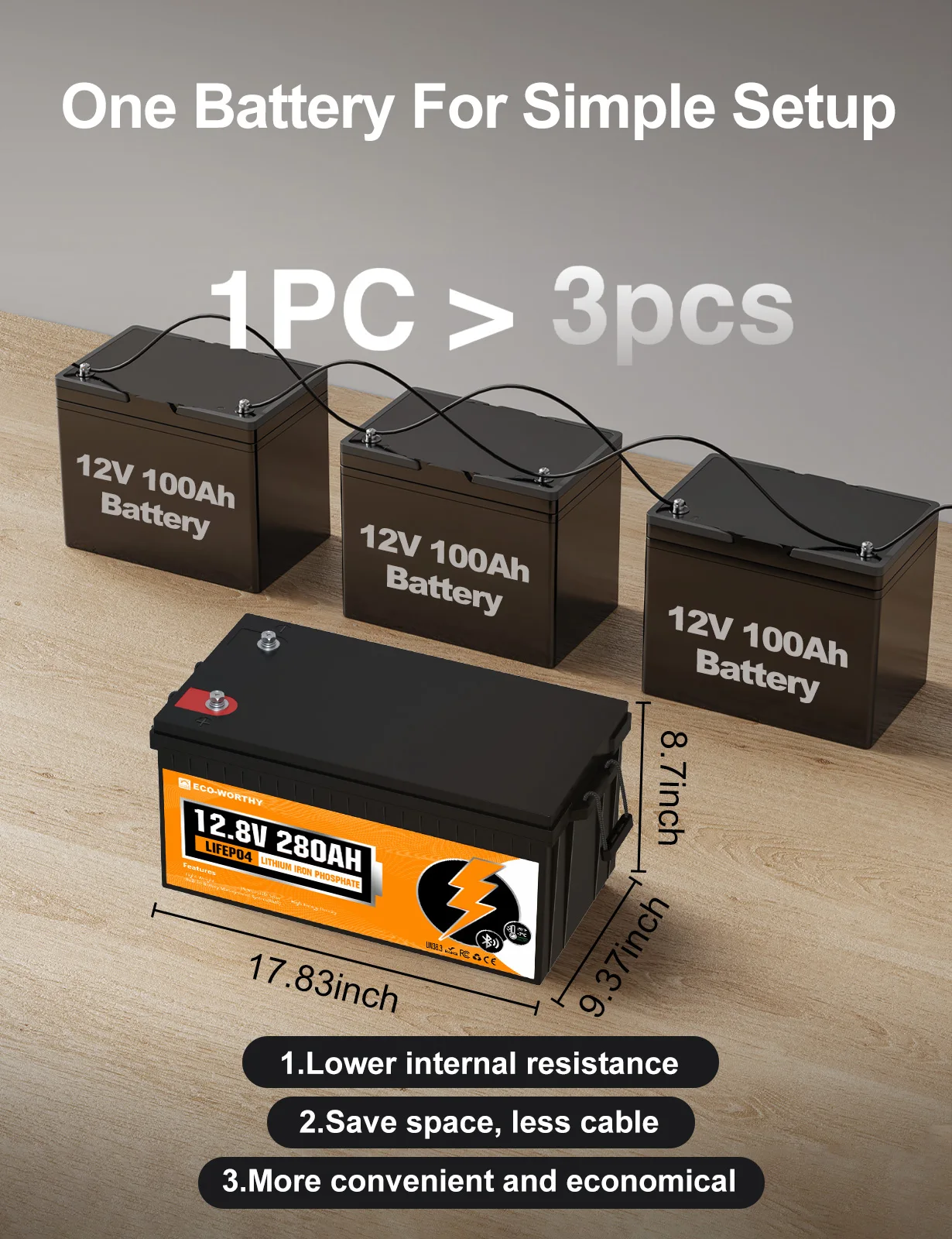

Battery Size(L*W*H): 17.8*9.37*8.7inch

Brand: Eco-worthy

Brand Name: ECO－WORTHY

Certification: NONE

Charge Over-Current Protection: 850A

Charging Mode: CC CV

Charging Temperature: 32~131℉/0~55 ℃

Charging Voltage: 14.6V

Chemical Composition: Lithium Iron Phosphate (LiFePO4)

Color: Black

Connection: Others

Country/Region of Manufacture: China

Current Type: AC/DC

Discharging Temperature: -4~131 ℉ / -20 ~55 ℃

Energy: 3584Wh

High-concerned chemical: None

Low temperature protection: Yes

Marke: ECO-WORTHY

Maximum continuous charge: 160A

Maximum continuous discharge: 200A

Model Number: 1100700117

Nominal Capability: 280Ah

Nominal Capacity: 280AH

Nominal Voltage: 12.8V

Number of series and parallel connection: 4P4S

Power Source: Solar

Rated Capacity: 280Ah

Rated Voltage: 12V

Short circuit protection: Yes

Size: 45.3*23.8*22.1CM

System Configuration: Off-Grid

Temperature Protection: Yes

Type: Li-Ion,Lithium Battery

Voltage: 12V,12V

Voltage at end of Discharge: 10V

Weight: 28.5KG

【6000+ Deep Cycles】

ECO-WORTHY 280Ah lithium iron phosphate (LiFePO4) battery can be charged and discharged in 6000+ deep cycles, which is 6 times longer than lead-acid battery.

【Higher Energy Density Cells】

12V 280Ah LiFePO4 battery with higher energy density, they are manufactured by Grade A LiFePO4 cells, more stable performance and greater power. Make you have further RV journeys and richer energy.

【Lightweight & Easy Installation】

ECO-WORTHY 280Ah LiFePO4 Battery is lighter than Lead-Acid battery with the same capacity. Our 280Ah LiFePO4 battery weight is 61.7 lbs, only 1/3 of Lead-Acid battery. More convenient carrying, any mount directions, no leakage risk, safer usage.

【Built-in BMS】

Built-in BMS to protect it from overcharge, over-discharge, charge over-current, discharge over-current, short-circuit, cell voltage self balance, high-temp discharge cut off.

【Application】

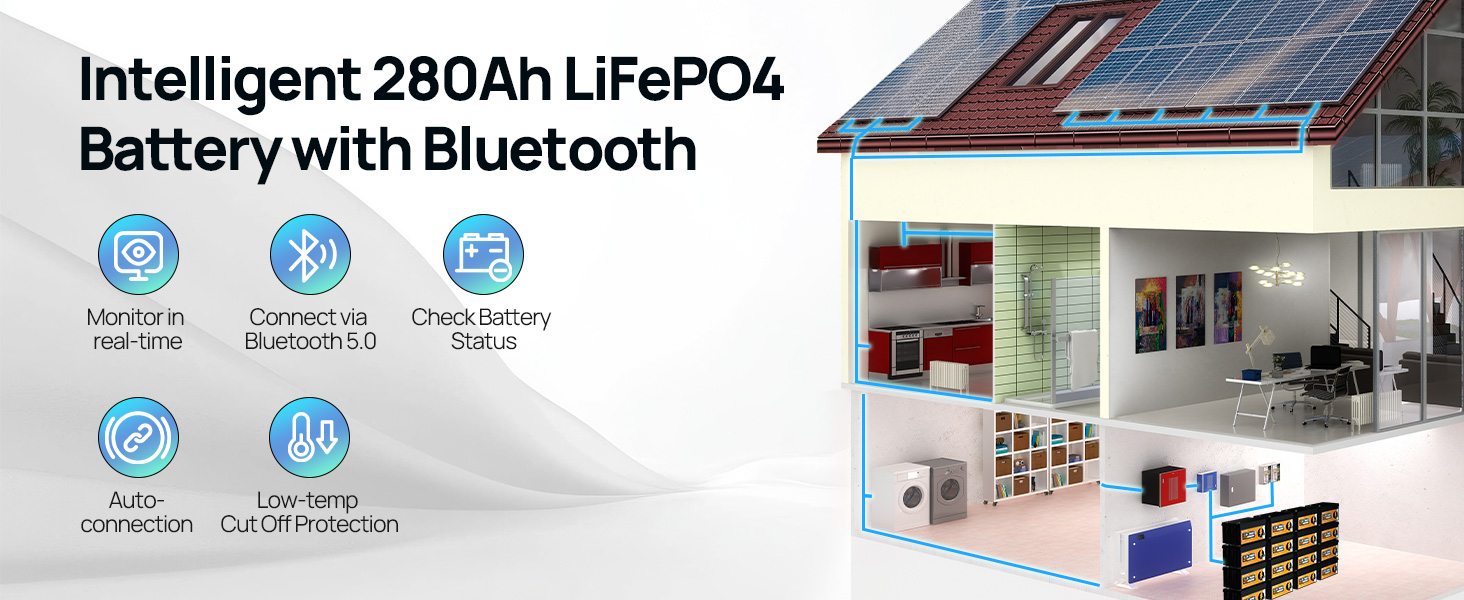

ECO-WORTHY 1/2/4 pack 280Ah lithium iron phosphate battery has 3584/7168/14336Wh of energy total, which can be expanded to 57.3kwh with 4 in series and 4 in parallel, perfect for RV, solar off-Grid system, UPS, golf cart, camper, marine, travel trailer, motor homes, etc

[Metal Case for Enhanced Fire Safety]

The Eco Worthy 280AH Lithium Battery features a heavy-duty metal enclosure for superior heat resistance and fire protection. It also includes a weak-current (low-voltage) power switch, allowing one-touch cut-off of battery output for safer installation and maintenance.

[No Battery Box Required]

Our 280AH Lifepo4 Battery features a rugged metal enclosure that provides strong protection and comes with 4 mounting feet, allowing direct installation inside your RV or camper without the need for an extra battery box. Saves space while keeping your setup secure and organized.

[Shock & Vibration Resistant]

The reinforced metal shell of the 12V 280AH Battery, combined with internal cell holders, keeps the battery stable during driving. It effectively resists impacts and road vibration, making it ideal for RVs, vans, and off-road use.

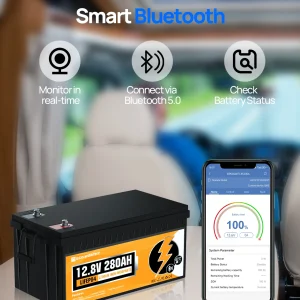

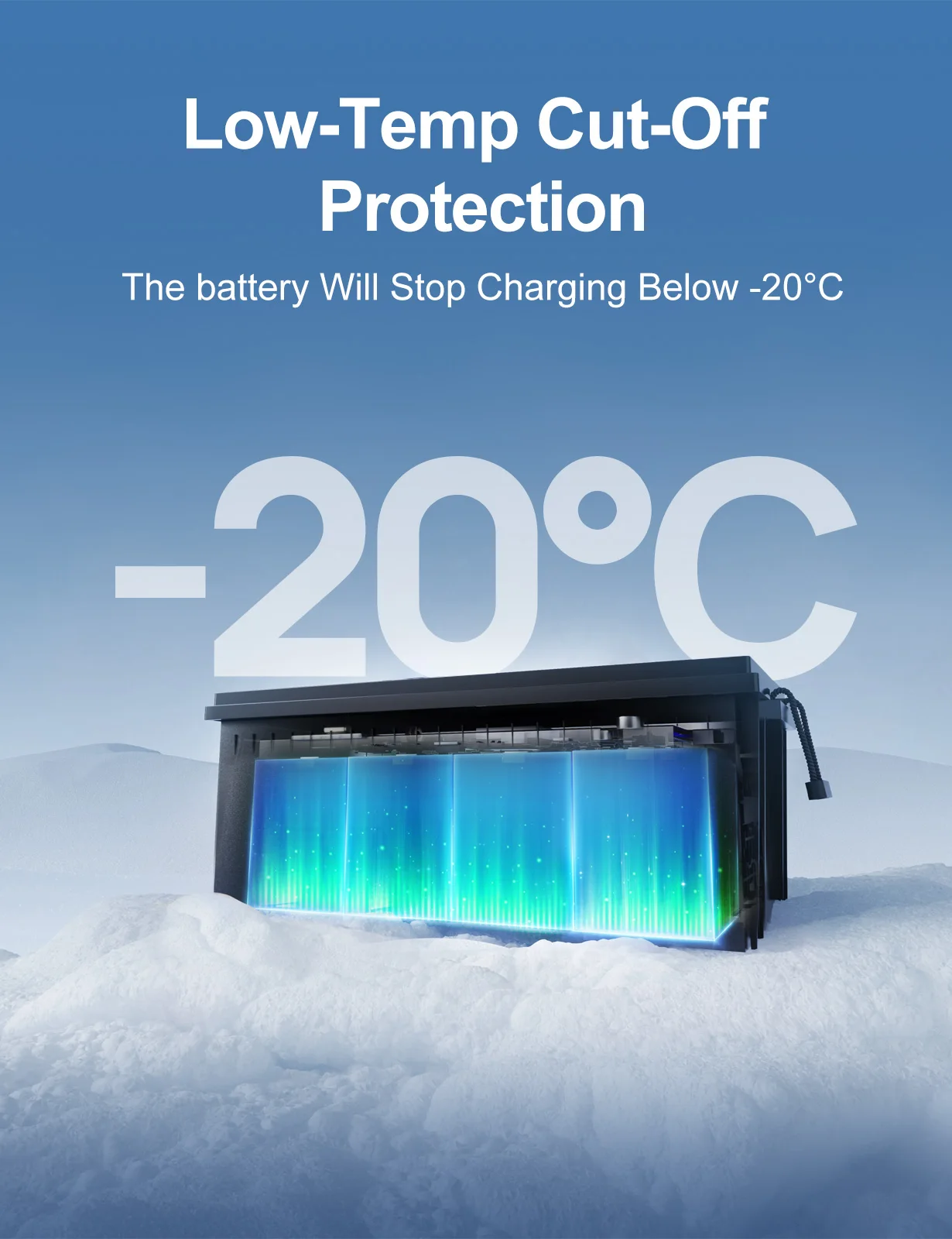

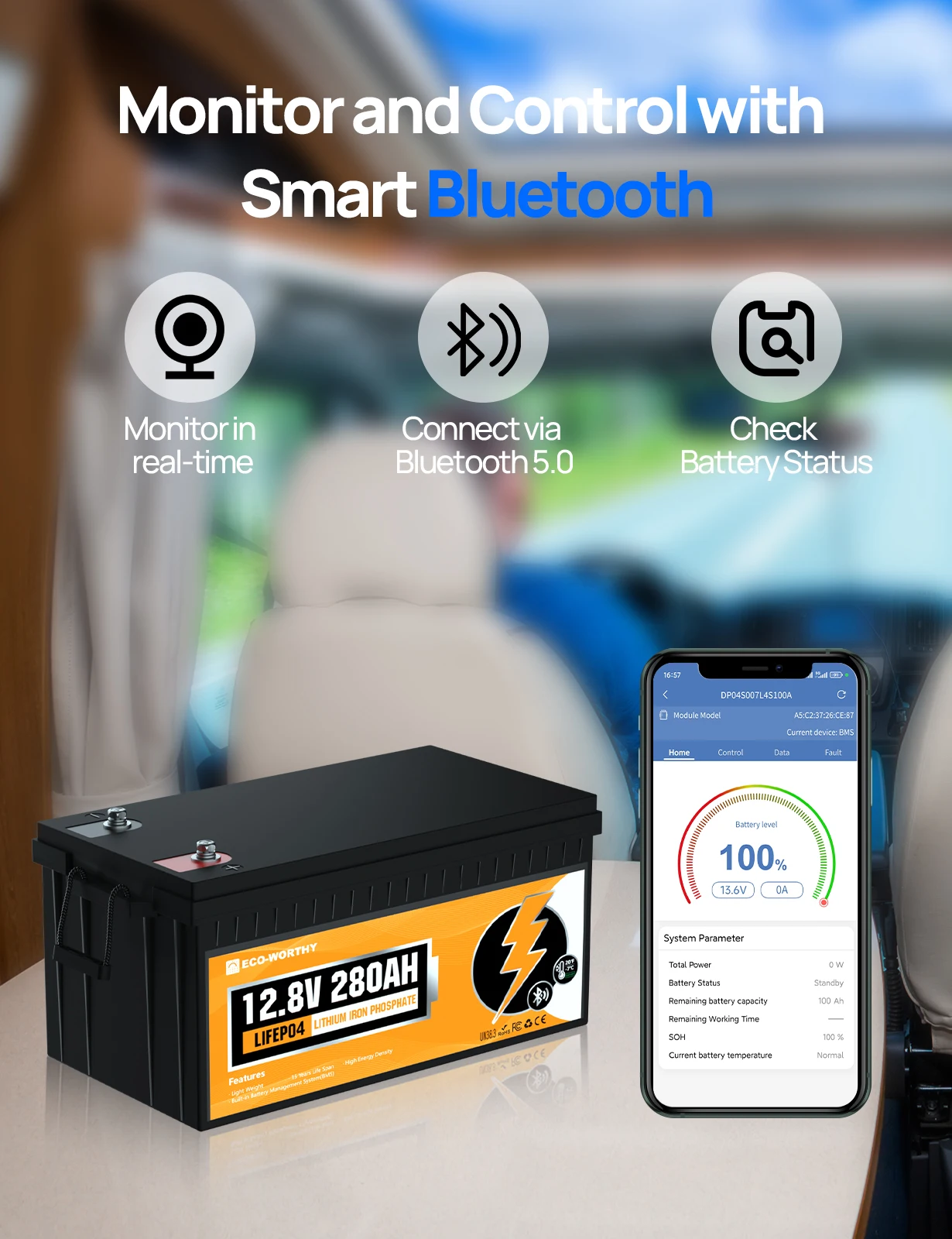

[Bluetooth Monitoring & Low-Temperature Protection]

Monitor battery status in real time via Bluetooth app—voltage, capacity, charge/discharge status at a glance. The Eco Worthy 280AH Lithium Battery features a built-in BMS that automatically cuts off charging in low temperatures to protect cells from cold damage.

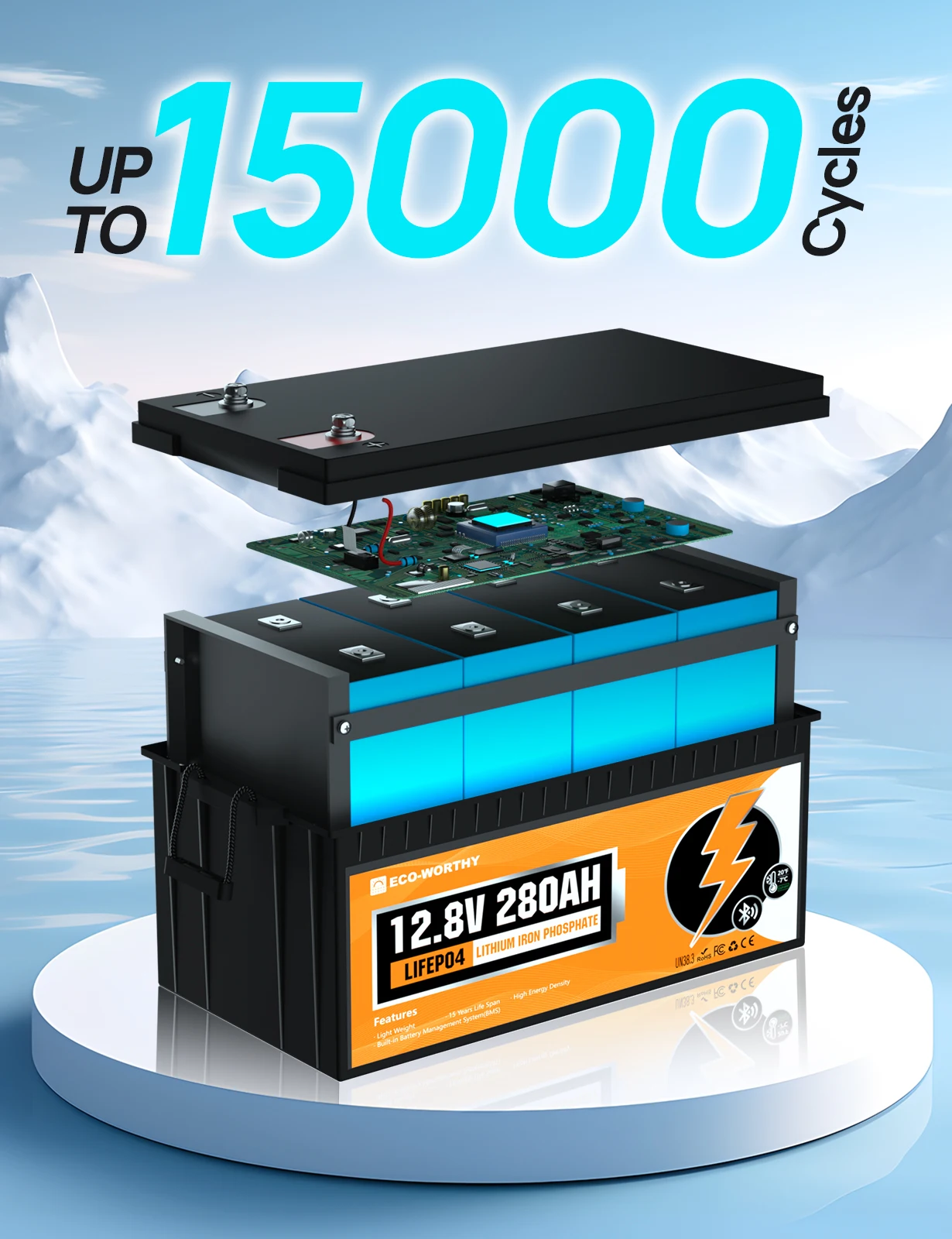

[Grade A Cells]

The Eco Worthy 280AH Lithium Battery is built with premium Grade A LiFePO4 cells and a 200A BMS offering over-charge, over-discharge, over-current, short-circuit, and temperature protection. It includes a low-power on/off switch for safer installation, maintenance, and daily use.
